Studio has nine screens in the sidebar and about a dozen places where real work happens. Nothing about it is hard once you know what each screen is for, but for the first week most people bounce between two of them and never discover the rest.
This is the map. One page, every screen, what it answers, and when you would actually open it.
The shape of the product in one sentence
You have a conversation that produces a test, the test lives in a project, several tests run together as an orchestration, and everything you ran shows up in reports.
Everything else — workflows, extensions, MCP — hangs off the edges of that sentence and can be ignored until you need it.
The screens you will use every day
| Home | A prompt box, four quick-start buttons, a project selector and your recently viewed tests. Everything starts here. See Starting a Session: The Studio Home Screen. |
| Tests | Every test in the account, with filters for project, author, tag and status, and inline tag editing. This becomes your main screen faster than you expect. See The Tests Screen. |
| The test editor | Not a sidebar item — you get here by opening a test. Three panes: the agent conversation on the left, the steps in the middle, the browser and the evidence tabs on the right. See Understanding a Test Run and Its Results. |
The screens you will use every week
| Orchestrations | Groups of tests that run as one job, on demand or on a schedule. This is where a pile of tests becomes something that gates a release. See Orchestrations: Running a Suite as One Job. |
| Reports | The only screen that looks across projects. Pass rates, trends and a per-project table. Analytics, not a live console. See Reports: Pass Rates, Trends and What They Actually Tell You. |
| Projects | Containers, and more importantly the home of settings that every test inside inherits. See Projects: Boundaries, Defaults and What Inherits What. |
The screens you will use occasionally
| Sessions | Every conversation ever held, searchable. You come here when you need to know why a test looks the way it does. See Sessions: The Conversations Behind Your Tests. |
| Workflows | Scheduled jobs written as prose that are not pass/fail tests — checking a price, pulling a figure, confirming a service is up. See Workflows: Scheduled Jobs Written in Plain Language. |
| Extensions | Under Assets. Your own code in Node, Python, Go or Java, callable from a step when the browser cannot do the job. Most teams never need one. See Extensions: Running Your Own Code Inside a Test. |
| MCP | Under Integrations. Connection recipes for driving Studio from your own AI tool. See Getting Started with the Functionize MCP Server. |
Where settings actually live
This trips up more people than any other part of the product, because there are two levels and they look identical.
| Project settings | The defaults everything inside inherits. Four groups: General, Execution (timeouts, execution behavior and execution presets), Access & Auth (cookies, HTTP headers, basic authentication, certificate handling, mutual TLS) and Advanced (browser behavior). |
| Test settings | The same groups, minus execution presets, with an Override project default switch on the execution settings. |
Change it on the project unless you have a reason not to. A timeout set on one test helps one test; the same timeout on the project helps every test somebody adds next month. Both screens have a Search settings box, which is faster than hunting through the groups. See Settings: Where Everything Lives and What to Change First.
Four things that are not screens, and are worth knowing early
| Instructions and actions | You write one sentence; Studio generates several numbered actions from it
(1 becomes 1.1, 1.2, 1.3). The gap
between your sentence and those actions is where almost every surprise comes from. This is
the single most useful thing to understand in the product. See Operating the Steps
Pane. |
| Components | A saved sequence of actions you can drop into any test. They are shared across the whole account, not per-project, which makes naming them well a real favor to everybody. |
| Tags | Also account-wide. They drive the filters on the Tests screen and are how a suite stays current instead of being a list somebody hand-picked once. |
| Execution presets | Named sets of variables defined on a project. You can apply one to a single run, to a whole orchestration, or to a session — which is how one set of tests proves a flow against two different data sets. See Execution Presets. |
Four statuses, not two
Studio does not only say pass or fail, and the two extra states are the ones that carry information.
| Passed / Failed | The test reached a verdict. |
| Warning | The run completed with something worth looking at. Not a pass and not a failure. Warnings do not break anything, so they accumulate silently — which is exactly why they are worth a weekly glance. |
| Incomplete | Described by Studio as "interrupted before finishing (timeout, crash)." The test never reached a verdict at all, so it usually says nothing about your application. |
Telling failed from incomplete is the difference between "the application is broken" and "something timed out". They appear as separate options in the status filters, and separately in an orchestration's re-run settings.
Home → build one test. Editor → read what it generated, not just whether it passed. Tests → tag it. Orchestrations → put two or three tagged tests in a job and run it on demand. Reports → look once you have something to look at. Everything else can wait.
Where to go next
- Your First 30 Minutes with Functionize Studio — the route above, with the buttons named.
- Your First Two Weeks: An Onboarding Plan — what to do after the first test works.
- Start Here: The Functionize Studio Exercise Series — eight short exercises against a demo store, no setup required.
- Naming, Tagging and Not Drowning — the conventions to agree before a second team joins.

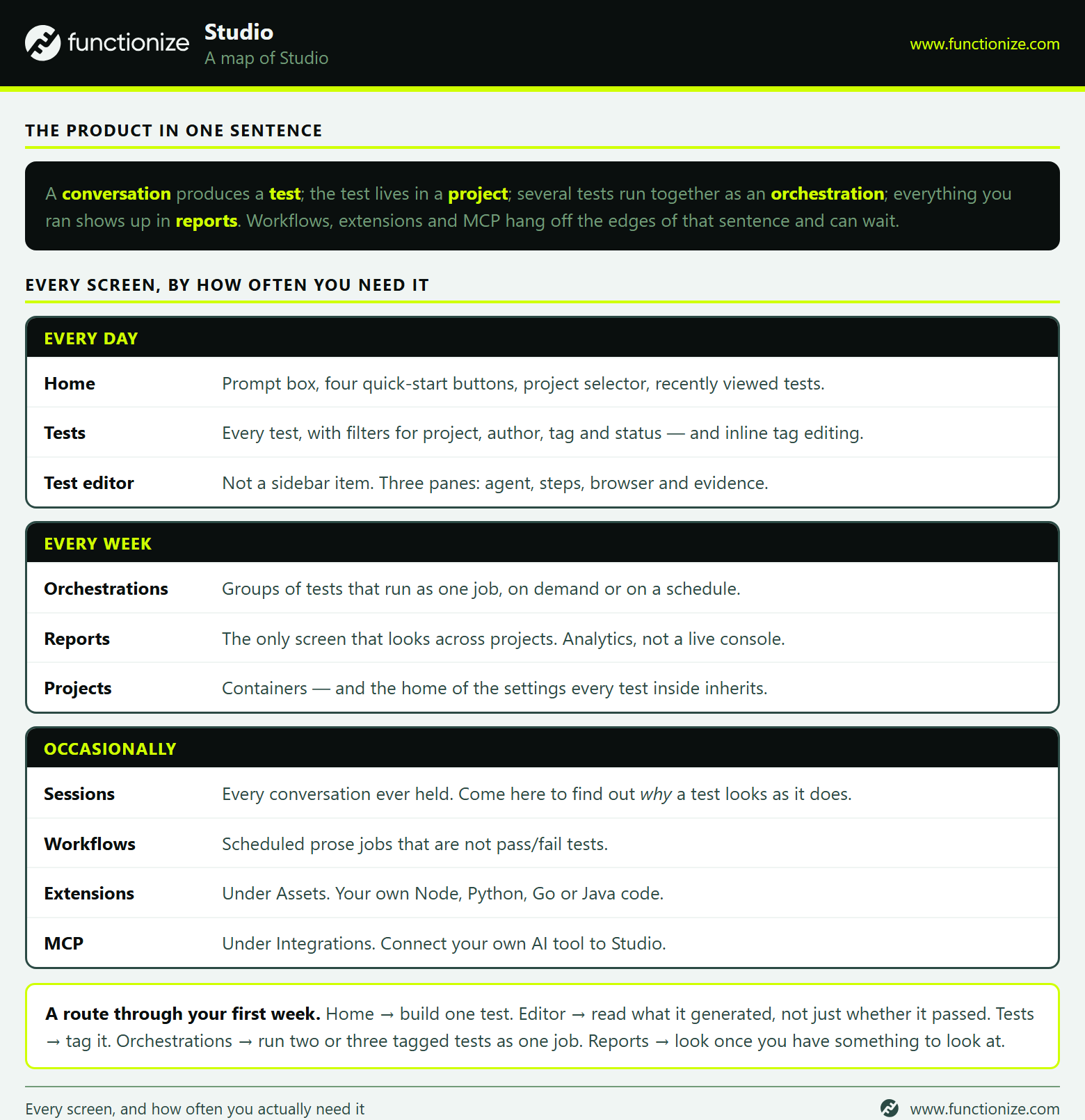

A PDF of this page, for reading offline, printing, or passing to somebody who does not have a Studio account yet.
A Map of Studio: Every Screen and What It Is For (PDF, 265 KB)
