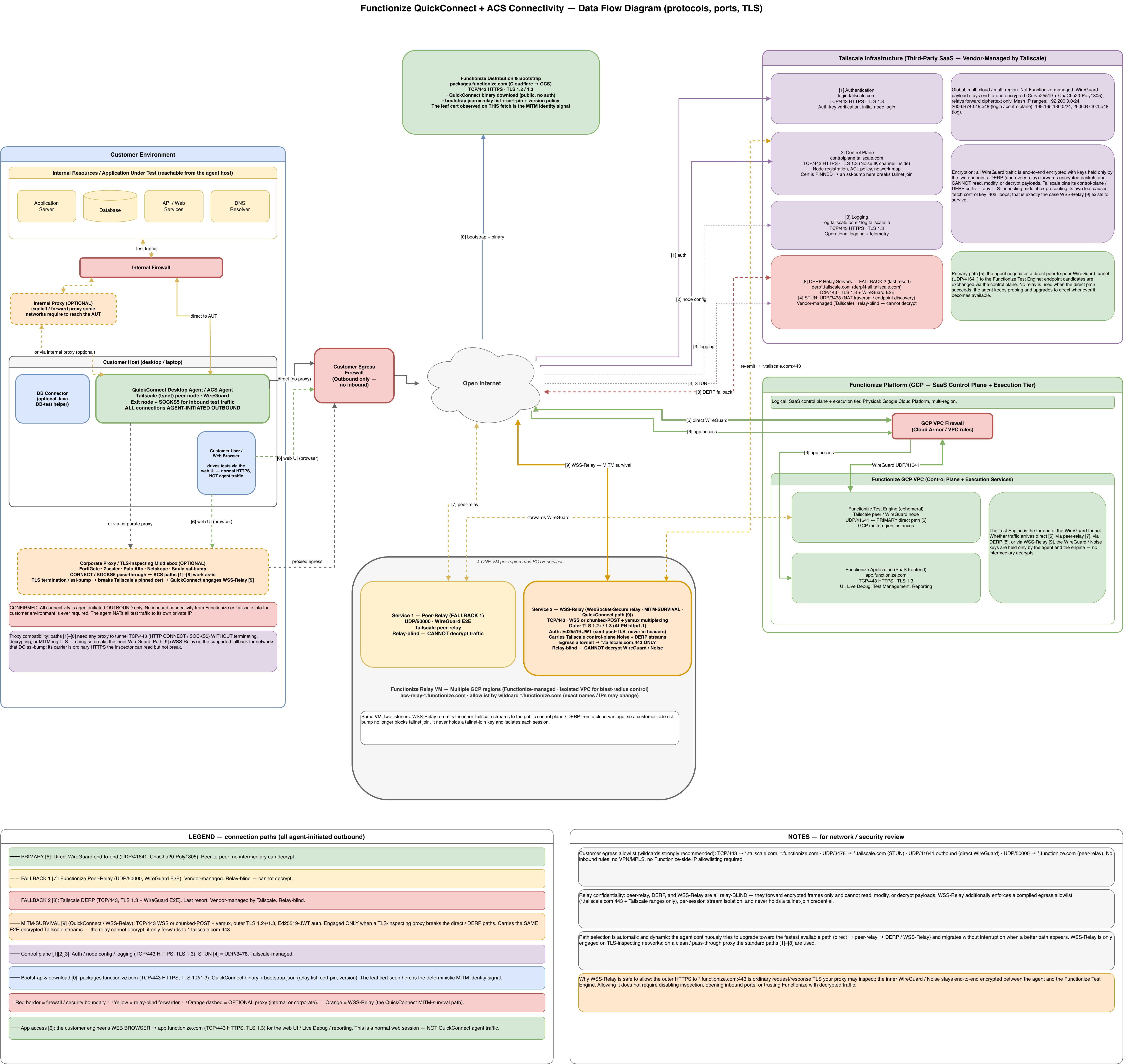

A complete data-flow diagram of how the QuickConnect desktop agent (and the ACS agent) connects a customer host to the Functionize platform, annotated with every protocol, port, and TLS version. It's built to hand to a customer's networking/security team for sign-off.
What the diagram shows
The diagram traces ten numbered flows, [0]–[9], all agent-initiated and outbound, across four trust zones: the customer environment, Tailscale infrastructure (third-party SaaS), the Functionize GCP platform, and the Functionize-managed relay VMs.
The data path, in preference order
The tunnel's data path follows a fixed preference order — direct WireGuard [5] → peer-relay [7] → DERP [8] → WSS-Relay [9] — with the WSS-Relay engaged only on TLS-inspecting networks.
What your network team needs to allow
It also marks the firewalls, the optional internal and corporate proxies, and the egress allow-list: TCP/443 to *.tailscale.com and *.functionize.com, plus UDP/3478, 41641 and 50000.
Two things to read off it directly
Two review notes are worth reading off the diagram directly: no inbound access is ever required, and every relay is blind to the end-to-end-encrypted payload.
Click the diagram to open it full size (5364 px wide) — it is far too detailed to read at article width.
- Functionize Quickconnect (ACS Quickconnect) — what it is and why IT can approve it
- Before You Point Studio at Your Own Application — the wider access checklist
A PDF of this page, for reading offline, printing, or passing to somebody who does not have a Studio account yet.
ACS Quickconnect Data-flow Diagram (PDF, 1569 KB)
